The temperature bulb is a component of the radiator thermostatic valve. It is used to sense the temperature change and generate the driving action. It is also called the temperature sensor bulb. The working medium is usually liquid, solid (paraffin) or gas-liquid mixture.

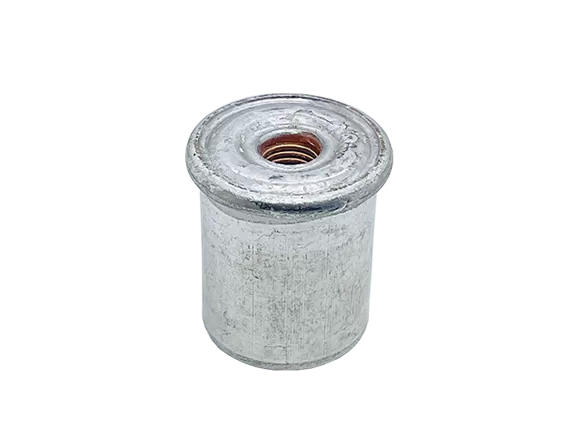

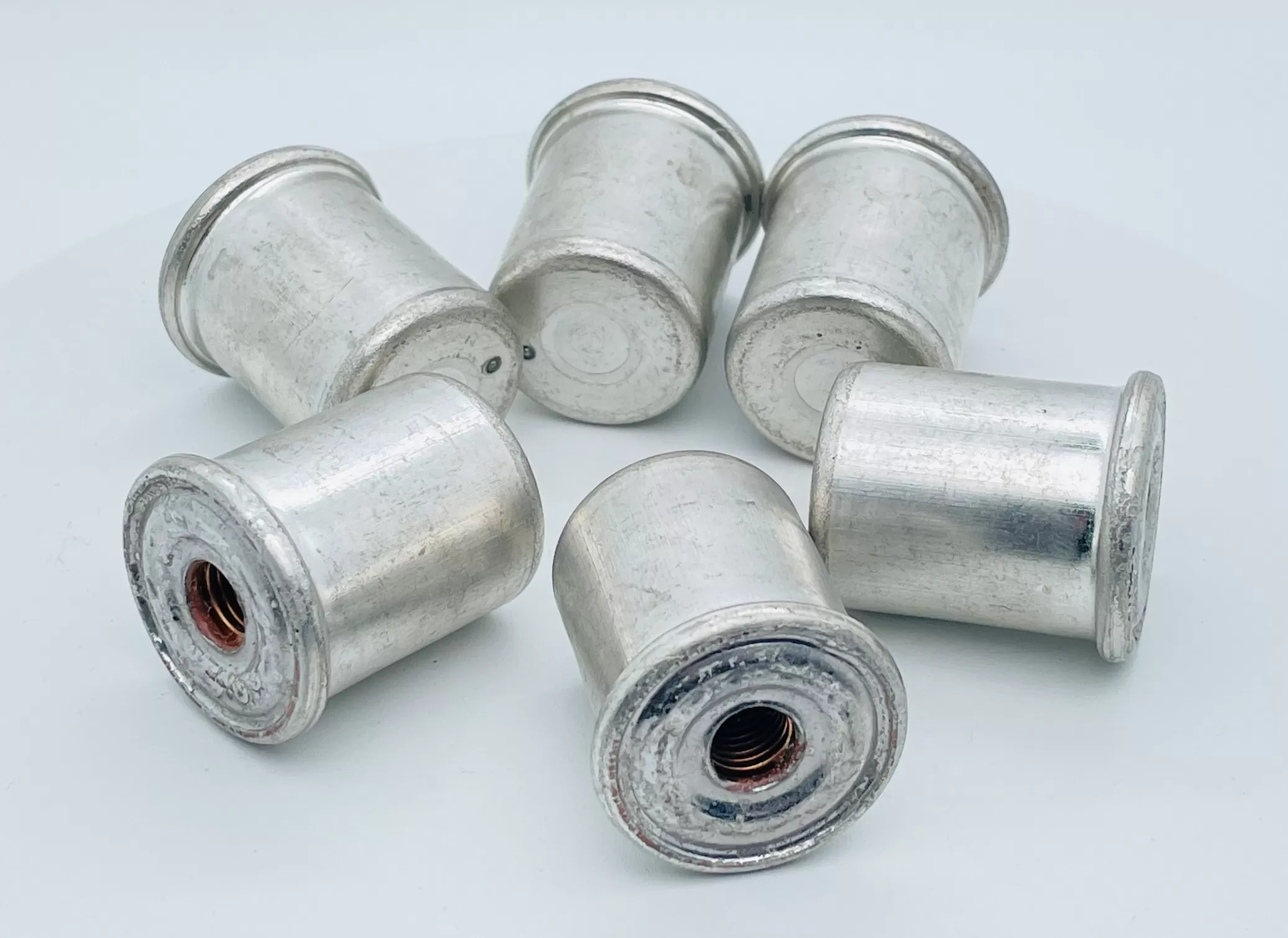

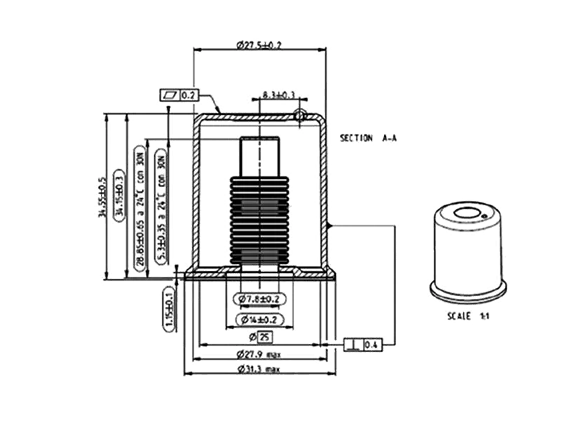

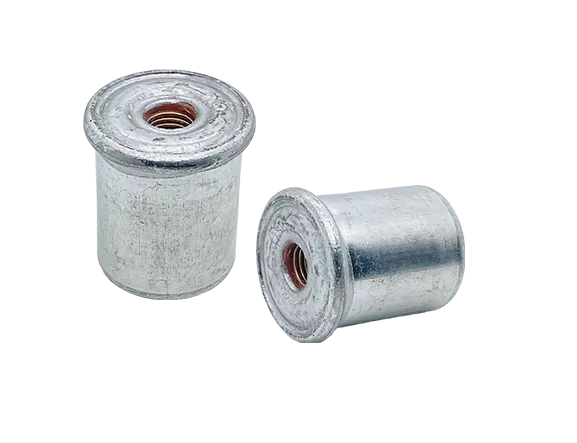

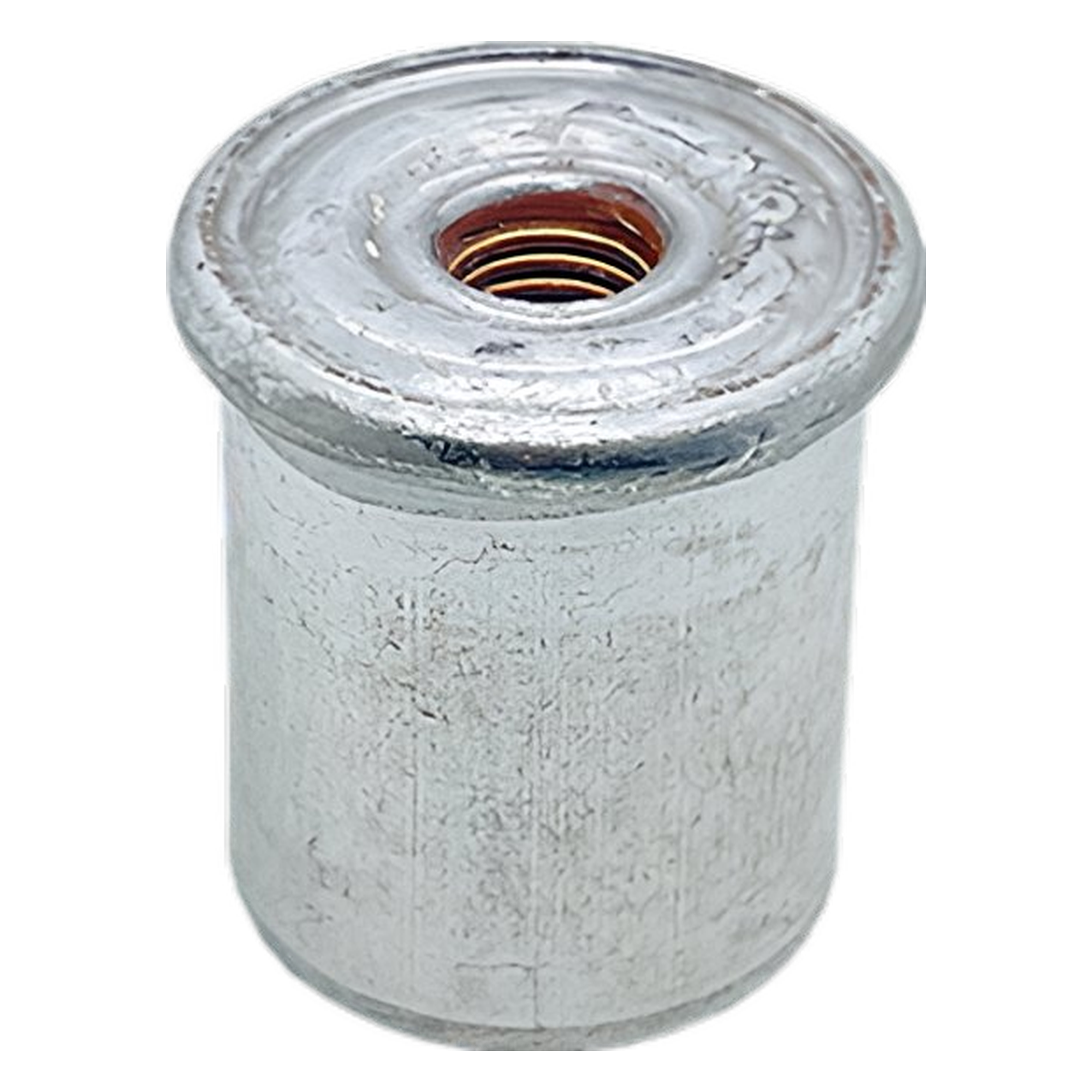

Valve temperature bulb
Woking range : At=25°C
Dllatation : 0.23mm/K±6%(tra 14℃ e 24℃)
Resllience : 0.05mm/10N
Filling : Ethyl Acetate
Working Load : 40-80N
Max .Working Load : 200N
Min .Working Load : 10N
Max.ambient Temperature : 60℃
Min.ambient Temperatur : -25℃
Hysteresis : 0.15K
Beijing Spring Valve and System Co., Ltd. excels in manufacturing various valves. Our products include Thermometeric radiator valves, constant flow valves, balancing valves, dynamic balancing valves, electric control valves, fan control valves, etc. We mainly provide products to overseas markets and enjoy a famous reputation due to our quality products and timely delivery.
