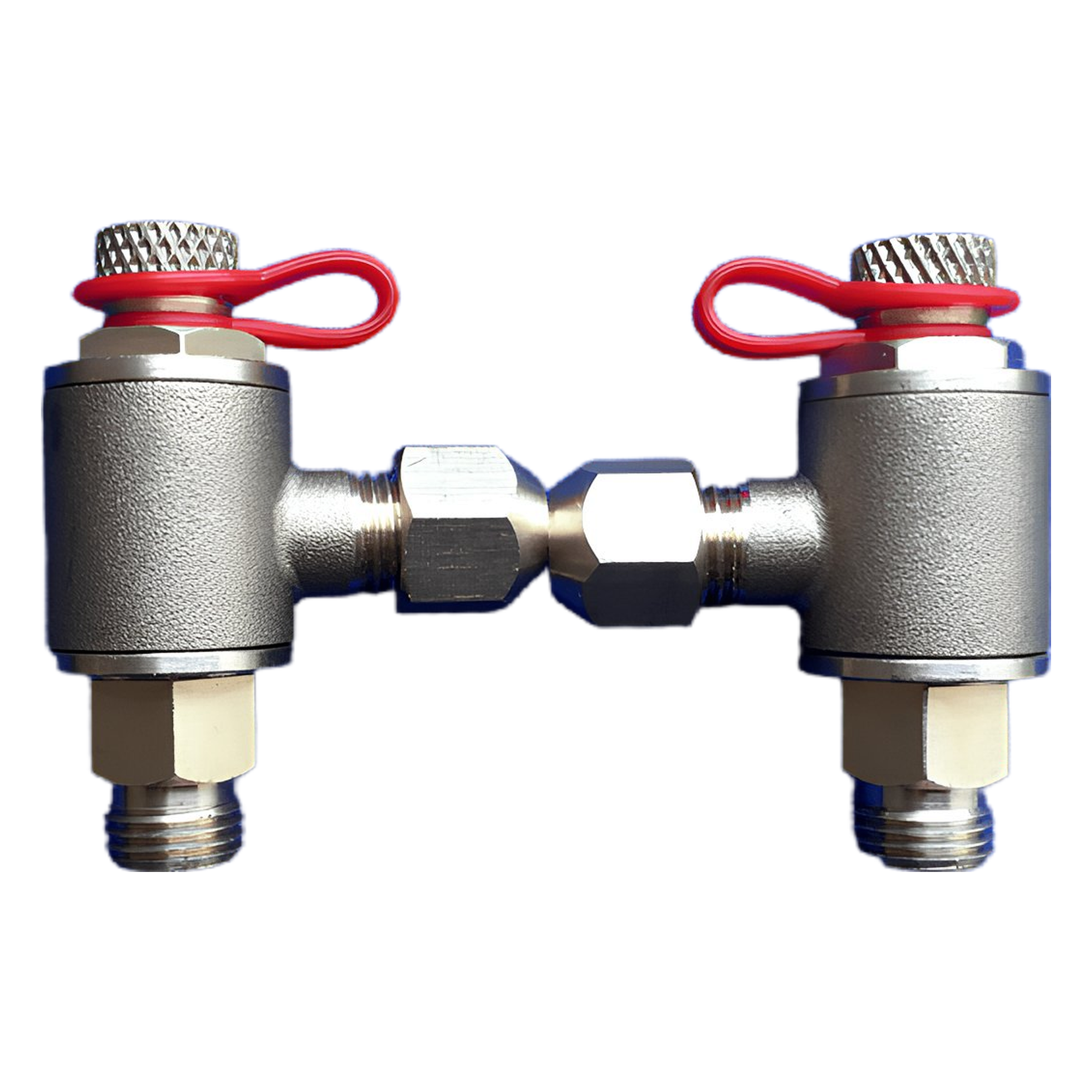

Pressure Measuring Blocking Valve

Description

Pressure Measuring Blocking Valve

• Product code:  SPR 3661B

• Parameter:

  Suitable for the measurement of balancing valves and differential pressure valves.

  The use of two conditions of pressure measurement blocking valve
  1. Differential pressure + balancing: The two valves are used together, and they are in conduction state under normal working conditions. When the system is running, it can be checked through the top of the pressure measuring valve when it is in the open state to detect the actual pressure difference. If the system is maintained, the valve needs to be closed (4mm hex wrench) to avoid water leakage.
  2. Differential pressure: It is conductive during normal operation. When the system is running, it can be checked through the top of the pressure measuring valve when it is in the open state to detect the actual pressure difference. If the system is maintained, the valve needs to be closed (4mm hex wrench) to avoid water leakage.
  3. How to use the pressure difference blocking valve: When it is necessary to open or close, first twist the cap on the blocking valve counterclockwise, and then use a 4mm Allen wrench to insert the blocking valve to open or close. The hour hand is on and counterclockwise is off.
  4. The outlet of the differential pressure blocking valve can be connected to the φ6*1 copper tube 360 degrees.
